Diaphragm Valve – Classification, Name, Fields, Keywords, Parameters, Applications, Industry Segmentation

Type: Weir type / Straight-through type / Sanitary type

Back to Product Line Request a Quote

Diaphragm Valve – Classification, Name, Fields, Keywords, Parameters, Applications, Industry Segmentation product image

Overview

Product Description

Type: Weir type / Straight-through type / Sanitary type

Application: Corrosive fluid, sterile fluid, ultra-pure water, food & pharmaceutical process

Performance Parameters

Capabilities

Key Features

Anti-corrosion
Hygienic & non-pollution
No dead angle
Sterilizable (CIP
Long service life
Easy maintenance

Usage Context

Applications and Search Context

Applications

Pharmaceutical & biotechnologyFood & beverageWater treatment & ultra-pure waterChemical & petrochemicalSemiconductor & electronicsPaper & textileClassification & NameWeir Diaphragm ValveStraight-Through Diaphragm ValveSanitaryHygienic Diaphragm Valve

Search Terms

Diaphragm valveDiaphragmValve bodyBonnetWeir typeStraight throughSanitary gradeSterileasepticPTFE diaphragm

Technical Data

Parameter Table

Technical Specification Parameters
Parameter	Value
Nominal Diameter (DN)	DN6 – DN300 / NPS 1/4” – 12”
Pressure Rating	PN6, PN10, PN16, Class 150
Working Temperature	-20°C to 220°C (depends on material)
Stainless Steel	SS304, SS316L
Plastic	UPVC, CPVC, PVDF, PP
Diaphragm Material	PTFE, EPDM, Silicone, FKM
End Connection	Flanged, Threaded, Clamped, Welded
Actuation Mode	Manual (Lever / Gear), Pneumatic, Electric
Seal Level	Zero leakage, bubble-tight
Design Standard	GB, ANSI, DIN, ISO, 3A, FDA, CE
Product Name	Diaphragm Valve
Type	Weir type / Straight-through type / Sanitary type
Application	Corrosive fluid, sterile fluid, ultra-pure water, food & pharmaceutical process
Performance	Parameters

Line

Diaphragm Valve – Complete Professional Version

Images

Specs

Product Gallery

Reference Images

Diaphragm Valve – Classification, Name, Fields, Keywords, Parameters, Applications, Industry Segmentation image 1

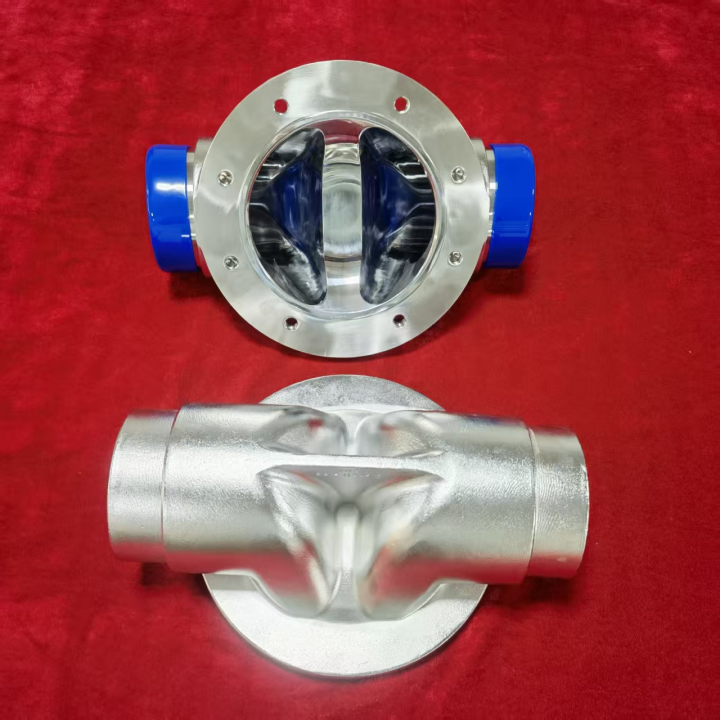

Diaphragm Valve – Classification, Name, Fields, Keywords, Parameters, Applications, Industry Segmentation image 2

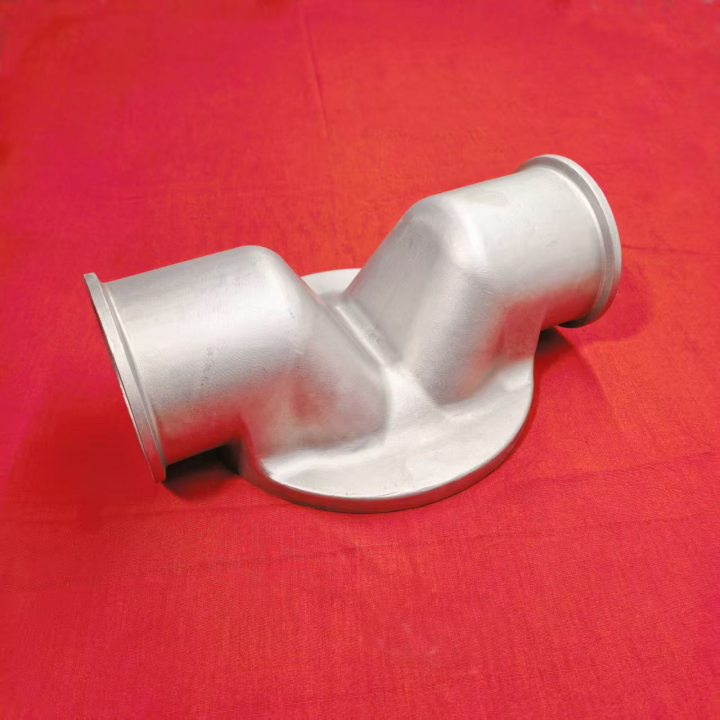

Diaphragm Valve – Classification, Name, Fields, Keywords, Parameters, Applications, Industry Segmentation image 3

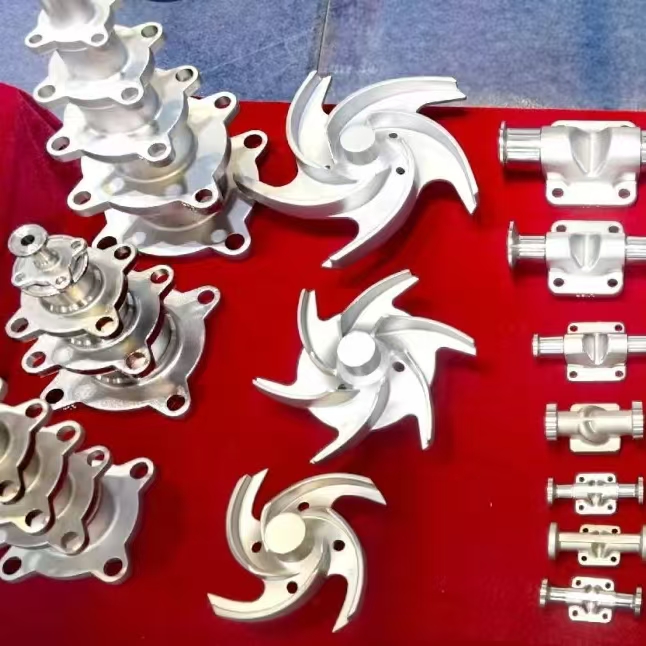

Diaphragm Valve – Classification, Name, Fields, Keywords, Parameters, Applications, Industry Segmentation image 4
